Sure-M and Sure-P
PDAC-LISTED FOR HCPCS CODE E0486
The Serena Sure is a Medicare E0486-coded oral appliance with a patent-pending hinge design that is strong, comfortable, and durable. It pulls the lower jaw while allowing natural side-to-side movement and offers easy, precise adjustability for consistent fit and performance.
Pull Forward Design: Pull-forward design helps minimize drop-jaw effects while maintaining optimal protrusion minimizing any need for elastics.
Freedom of Lateral Movement: Integrated posts matched to the hinge allows for enhanced freedom of lateral movement.
Durable: The nylon custom appliance with integrated post design and robust hinges provide extreme durability. Click here to watch.
Comfortable: Low-profile, ultra-smooth fit for maximum patient comfort.
Ease of Use: Sealed finish for easy cleaning. Easy adjustment. Included calibration tool enables precise, balanced protrusion.
FDA CLEARED
PATENTED DESIGN
3-YEAR WARRANTY
How to Use
Working with your dental healthcare professional, adjust the hinge to the proper length using the hinge calibration tool and the screwdriver provided. Always follow your dental healthcare professional’s instructions. The numbers represent millimeters of protrusion of the lower jaw.

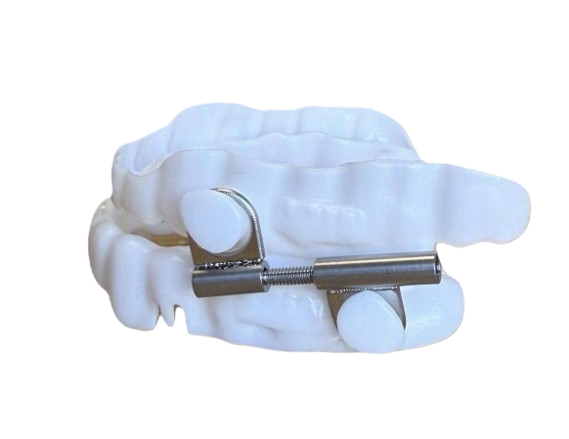

The Sure-M hinge is adjusted from the posterior as shown. Turn the hex driver counter clockwise to shorten the hinge.
CAUTION: Never tighten the hinge to the titration wheel, shorten the hinges only until they gently touch the titration tool
INCREASE PROTRUSION (shorten the hinges)
1. Place the calibration tool over the hinge threads at the desired number.
2. Insert the adjusting tool into the hinge screw.
3. While gently holding the upper appliance forward, turn the screw until the outer tubes of the hinge slightly contact the edges of the calibration tool tab. DO NOT OVER TIGHTEN
4. Remove the calibration tool.
5. Repeat the same procedure on the opposite hinge.

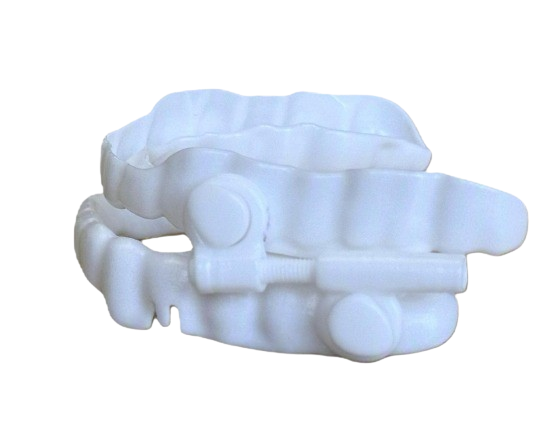

The Sure-P hinge is adjusted from the anterior as shown. Turn the screwdriver clockwise to shorten the hinge.
CAUTION: Never tighten the hinge to the titration wheel, shorten the hinges only until they gently touch the titration tool
REDUCE PROTRUSION (lengthen the hinges)
1. Insert the adjusting tool and turn the screw to expose slightly more thread than the width of the calibration tool tab of the selected calibration number.
2. Place the calibration tool over the threads.
3. While gently holding the upper appliance forward, turn the screw until the outer tubes of the hinge slightly contact the edges of the calibration tool tab. DO NOT OVERTIGHTEN
4. Remove the calibration tool.
5. Repeat the same procedure on the opposite hinge.
Note: Always use the same calibration number on both hinges. The adjustment process may take several weeks of use to achieve optimal comfort and effectiveness.
How to Use
The Nylon ema uses elastic straps to protrude the lower jaw forward. The product design and the elastic straps result in the appliance allowing lateral and protrusive movement while wearing the appliance. The straps come in lengths 13mm – 21mm. The shorter the strap, the more the mandible will be advanced. As a standard, the ema strap buttons are 20mm apart so a 19mm strap will equal +1mm advancement.
Ask your sales representative if you would like to customize the distance between the buttons.
The Serena nylon ema includes a starter package of blue straps, however Serena Sleep does not sell straps. The picture displays various straps that are available from multiple providers.
The Nylon ema uses elastic straps to protrude the lower jaw forward. The product design and the elastic straps result in the appliance allowing lateral and protrusive movement while wearing the appliance. The straps come in lengths 13mm – 21mm. The shorter the strap, the more the mandible will be advanced. As a standard, the ema strap buttons are 20mm apart so a 19mm strap will equal +1mm advancement.
Ask your sales representative if you would like to customize the distance between the buttons.
The Serena nylon ema includes a starter package of blue straps, however Serena Sleep does not sell straps. The picture displays various straps that are available from multiple providers.
Customer Satisfaction
At Serena Sleep, customer satisfaction is our passion! Resolving sleep apnea and snoring has many benefits. Our patients tell us they experience improved health, improved life style, increased energy and happiness.
But don’t just take our word for it, see what patients and leading dental sleep professionals say about our Serena Sleep products;
Specifications
- Instructions for Use: Click here to see the document
- Patented: US Patent 11185436
- FDA Cleared: Intraoral devices for snoring and obstructive sleep apnea, Class ll, Product Code LRK
- Material: Nylon 12
- Standard nominal material thickness: 1 mm
- Warranty: Click here to see the document
- DFU: Click here to see document
Patients:
Ask your Dental Professional about Serena Sleep Appliances
Dentist:
For more information, Click here
Our products are proudly made in the USA and 100% American owned.
Coming soon, practice portal to upload scans, obtain order status, pay invoices and more. We will also be adding educational videos and documents
